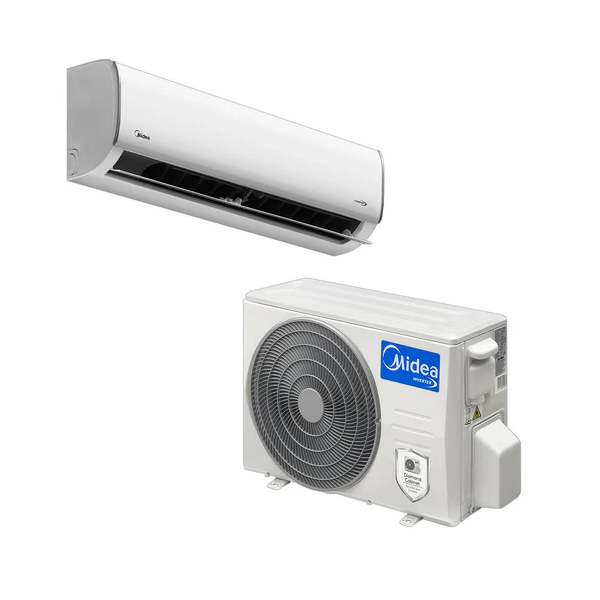

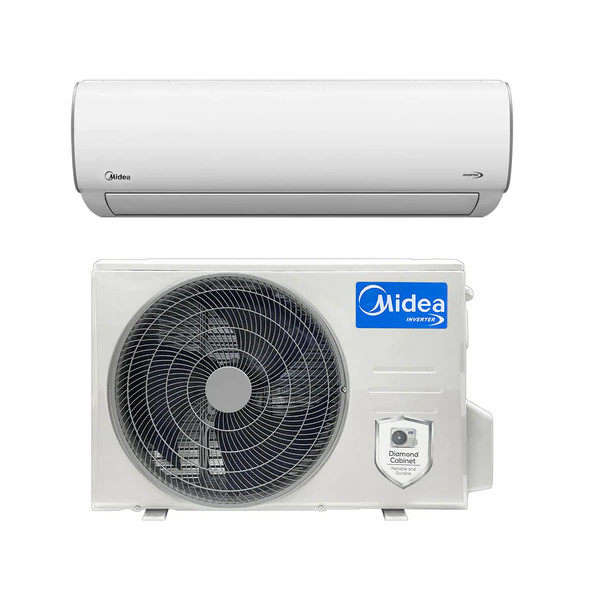

9000 BTU AC (Inverter-Forest Series)

Specification

Midea – Air Conditioner

Brand: Midea

Model: MSAF-10CRDN8

Capacity: 9000BTU

Type: Cooling Only

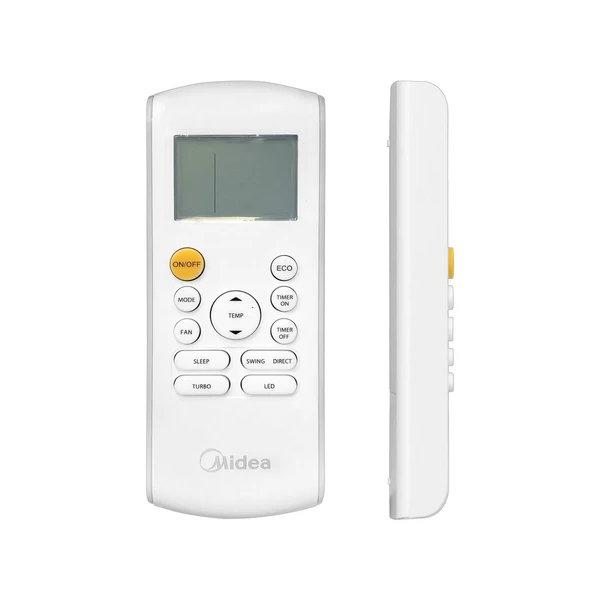

Control Type: Remote

Power Supply (V, Ph, Hz): 220-240 V, 1 Ph, 50 Hz

Cooling:

• • Cooling Capacity (Btu/h): 9000Btu
  • Input (W): 745W
  • Rated Current (A): 3.6A
  • EER (W/W): 3.54

Max. Input Consumption (W): 1150W

Max. Current (A): 6.5A

Compressor:

• • Type: Rotary
  • Capacity (W): 3255W
  • Input (W): 826W
  • Rated current (RLA) (A): 5.65A

Warranty: 1 Year Warranty plus 5 Years Compressor Warranty

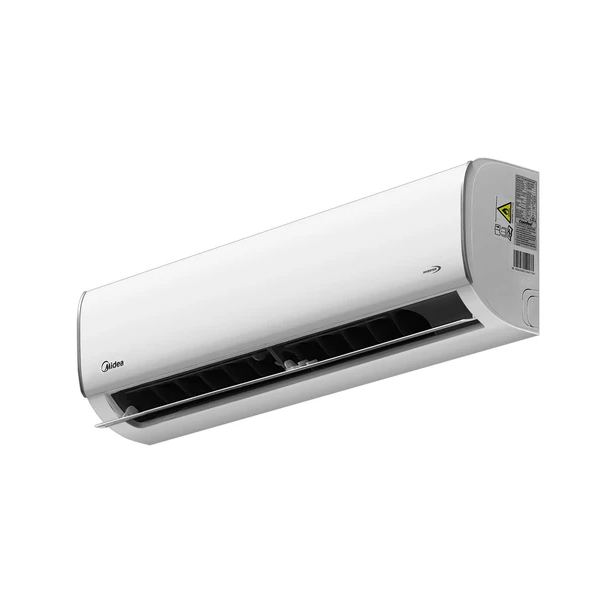

Indoor Unit:

Indoor Fan Motor:

• • Input (W): 40W
  • Capacitor (uF): 1.2 uF
  • Speed (High/Middle/Low): 1050/950/800 r/min

Indoor Coil:

1. 1. Number of rows: 2
   2. Tube pitch (a) x row pitch (b): 21 x 13.37mm
   3. Fin spacing: 1.2mm
   4. Fin type (code): Hydrophilic aluminum
   5. Tube outside dia. and type: Φ7,Inner groove tube
   6. Coil (length x height x width): 510 x 84 x 13.37mm + 510 x 105 x 26.74mm + 510 x 84 x 26.74mm
   7. Number of circuits: 2

Indoor air flow (High/Middle/Low): 490/384/310 m3/h

Indoor noise level (High/Middle/Low): 39/34/29 dB (A)

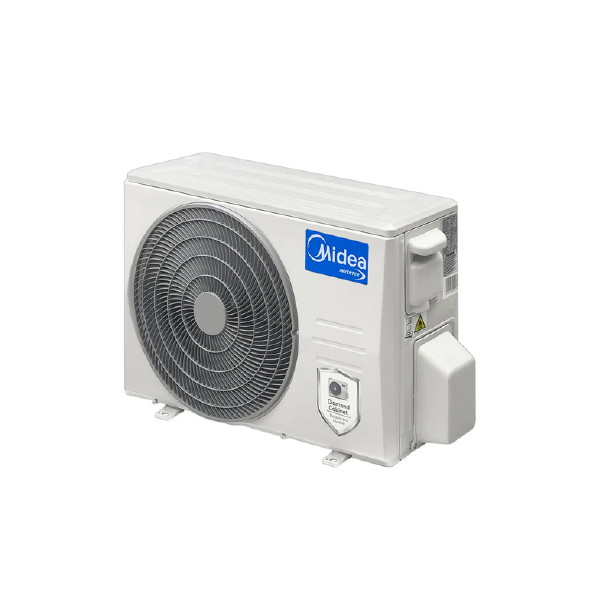

Outdoor Unit:

Outdoor Fan Motor:

• • Input (W): 63.5W
  • Capacitor (uF): 2.5 uF
  • Speed: 860 r/min

Outdoor Coil:

1. 1. Number of rows: 1
   2. Tube pitch (a) x row pitch (b): 19.5 x 11.6mm
   3. Fin spacing: 1.2mm
   4. Fin type (code): green anti-corrosion aluminum
   5. Tube outside dia. and type: Φ5,Inner groove tube
   6. Coil (length x height x width): 740 x 468 x 11.6mm
   7. Number of circuits: 2

Outdoor air flow: 1800 m3/h

Outdoor noise level: 51.5 dB (A)

Other:

Refrigerant Type: R32/0.38 kg

Design Pressure: 4.3/1.7 MPa

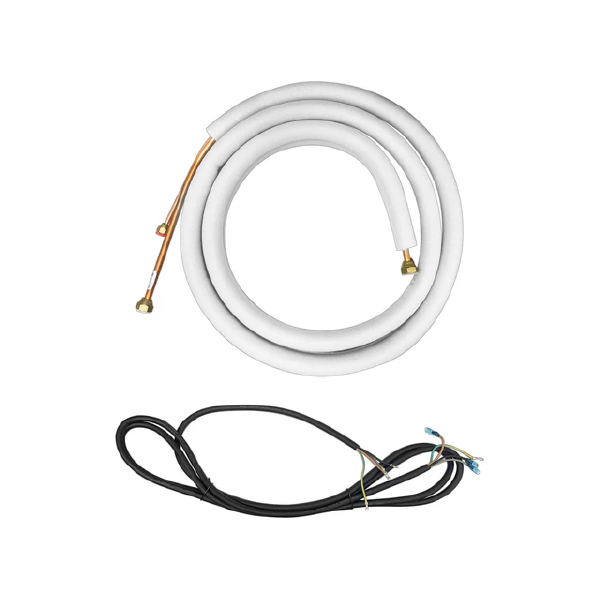

Refrigerant Piping:

• • Liquid Side / Gas Side: 6.35mm (1/4in) / 9.52mm (3/8in)
  • Max. Refrigerant Pipe Length: 25m
  • Max. Difference in Level: 10m

Connection Wiring: 3.5m

Plug Type: BS three flat pin plug

Thermostat Type: Remote Control

Operation Temperature: 17 ~ 30 °C

Room Temperature:

• • Indoor (Cooling): 17 ~ 32 °C
  • Outdoor (Cooling): 0 ~ 50 °C

Application Area: 12 ~ 18m²

Dimension & Weight:

Net dimensions (W x D x H):

• • Indoor: 715 x 194 x 285mm
  • Outdoor: 720 x 270 x 495mm

Packing dimensions (W x H x D):

• • Indoor: 780 x 270 x 365mm
  • Outdoor: 835 x 300 x 540mm

Net weight:

• • Indoor: 7.4kg
  • Outdoor: 21.7kg

Gross weight

• • Indoor: 9.4kg
  • Outdoor: 23.6kg
